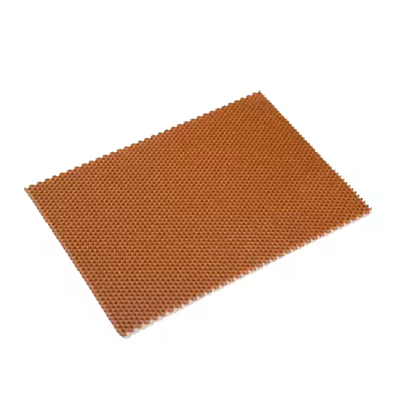

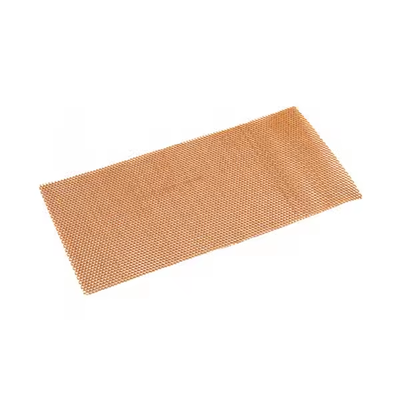

Industrial Grade Aramid Honeycomb Core
1.5mm thickness industrial grade aramid honeycomb core featuring exceptional corrosion resistance and ultra-lightweight properties for demanding applications.
Product Description

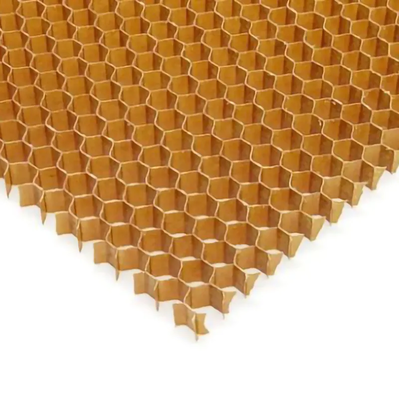

Aramid honeycomb core is a hexagonal structural core material reinforced with phenolic resin, widely utilized in aerospace and industrial applications. Continuous improvements in mechanical properties ensure these products meet the rigorous requirements of advanced industries.
Technical Specifications
| Specifications |
Cell Size (mm/inch) |
Density (kg/m³) |
Compression Strength (MPa) |
L-Shear Strength (MPa) |
W-Shear Strength (MPa) |
| Commercial Grade Aramid Honeycomb Core |
| BHC1313-3.2-48 | 3.2 (1/8) | 48 | 1.9 | 1.16 | 0.62 |
| BHC1313-3.2-64 | 3.2 | 64 | 3.1 | 1.48 | 0.82 |
| BHC1313-3.2-80 | 3.2 | 80 | 4.7 | 1.95 | 1.05 |
| BHC1313-3.2-96 | 3.2 | 96 | 6.6 | 2.45 | 1.42 |
| BHC1313-4.8-32 | 4.8 (3/16) | 32 | 0.9 | 0.58 | 0.36 |
| BHC1313-4.8-48 | 4.8 | 48 | 2.6 | 0.98 | 0.56 |
| BHC1313-4.8-64 | 4.8 | 64 | 3.4 | 1.7 | 0.92 |
| BHC1313-4.8-80 | 4.8 | 80 | 6 | 1.95 | 1.1 |
| BHC1313-4.8-96 | 4.8 | 96 | 7.3 | 2.26 | 1.32 |
| BHC1313-6.4-24 | 6.4 (1/4) | 24 | 0.54 | 0.34 | 0.18 |
| BHC1313-6.4-32 | 6.4 | 32 | 0.8 | 0.54 | 0.3 |
| BHC1313-6.4-48 | 6.4 | 48 | 2.05 | 1 | 0.56 |
| BHC1313-6.4-64 | 6.4 | 64 | 3.4 | 1.54 | 0.79 |
| BHC1313-9.5-24 | 9.5 (3/8) | 24 | 0.52 | 0.32 | 0.16 |
| BHC1313-9.5-32 | 9.5 | 32 | 0.68 | 0.56 | 0.29 |
| BHC1313-9.5-48 | 9.5 | 48 | 9.6 | 1.15 | 0.66 |
| Aerospace Grade Aramid Honeycomb Core |
| BHC1313A-3.2-48 | 3.2 (1/8) | 48 | 2 | 1.26 | 0.72 |
| BHC1313A-3.2-64 | 3.2 | 64 | 3.2 | 1.58 | 0.92 |
| BHC1313A-3.2-80 | 3.2 | 80 | 4.8 | 2.05 | 1.15 |
| BHC1313A-3.2-96 | 3.2 | 96 | 6.7 | 2.55 | 1.52 |
| BHC1313A-3.2-128 | 3.2 | 128 | 11.4 | 3.05 | 1.88 |
| BHC1313A-3.2-144 | 3.2 | 144 | 13.3 | 3.15 | 2 |
| BHC1313A-4.8-32 | 4.8 (3/16) | 32 | 1 | 0.68 | 0.46 |
| BHC1313A-4.8-48 | 4.8 | 48 | 2.7 | 1.08 | 0.66 |
| BHC1313A-6.4-48 | 6.4 (1/4) | 48 | 2.15 | 1.1 | 0.66 |
| BHC1313A-9.5-48 | 9.5 (3/8) | 48 | 9.7 | 1.25 | 0.76 |
Key Advantages
- Super light weight with high strength and anti-fatigue properties
- Outstanding corrosion resistance and flame resistance
- Excellent environment adaptability and electrical insulation
- Good dielectric properties and high stability
Applications
Rail transit, aerospace, radomes, yachts, sports products, automotive, and various industrial applications.
Company Profile
Suzhou Beecore Honeycomb Materials Co. Ltd, originating from Besin (Dutch) International Group founded in 1957, is a world-leading professional manufacturer of honeycomb materials. The company is committed to research and development of honeycomb technology, producing slant-porous aluminum honeycomb core, honeycomb core, honeycomb panels, and finished products including truck bodies and laser TV/projection screens.
Exhibition Show
Frequently Asked Questions
What is aramid honeycomb core used for?
Aramid honeycomb core is one of the best EMI materials, available in industrial and aviation grades. It is widely used in rail transit, aerospace, radomes, yachts, sports products, automotive, and various industrial applications.
What are the advantages of aramid honeycomb core?
Aramid honeycomb core offers super light weight with high strength anti-fatigue properties, outstanding corrosion and flame resistance, excellent environment adaptability and electrical insulation, plus good dielectric properties and high stability.
What is the packaging method of aramid honeycomb core?
Small samples are packed in cardboard, while bulk orders are packed in plywood cases for secure transportation and storage.
